Trimoterm fire resistant roofs are a perfect solution for roofs with inclines. Due to the excellent technical characteristics and a complete range of technical solutions and elements, Trimoterm roofing systems enable active and creative adaptations to all demands on buildings.
Trimoterm SNV fire rated panels are solutions for roofs with inclines on office buildings, commercial centres, cultural institutions and industrial facilities. Their versatility makes them suitable for installation as façades, partition walls and ceilings.
Excellent fire resistance up to 180 min
Excellent thermal and sound insulation
Top structural performance
Worldwide realized project and certificates

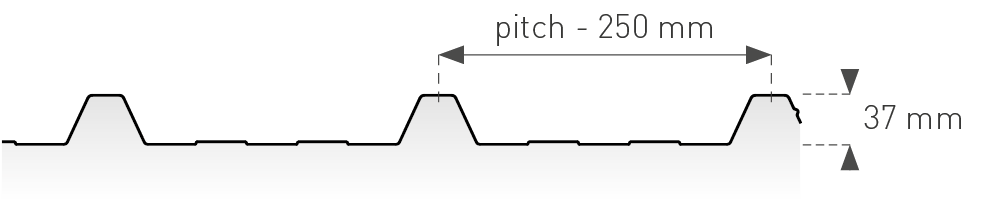

Trapezoid panel profile
|Panel thickness [mm]||60 - 240|
|Max. achievable fire resistance (EN 14509)||EI 30 - EI 180|
|Combustibility of insulant core (EN 13501-1)||Non - combustible, class A1|
|Airborne sound insulation Rw (C;Ctr) (dB) EN 14509||32 (-1, -4), 33 (-1, -4)|
|Min. roof slope||5° or 3° with additional sealing|
|Cover width [mm]||1000|
|Panel length [m]||up to 14|
|Weight SNV [kg/m²], Fe 0.55/Fe 0.5||15.7 – 32.0|
|*U Thermal transmittance [W/m²K] (EN 14509)||0.59 – 0.16|
Trimo offers a wide range of versatile accessories, including fasteners for fixing the panels and flashings, profiles, flashings as well as sealants and insulation.
Trimo offers a wide range of versatile accessories for its fireproof roofs, including fasteners for fixing the panels and flashings, profiles, flashings as well as sealants and insulation.
