ENGINEERED WALL SOLUTIONS
Xline panels provide a fast and clean solution for fire-rated, non-loadbearing partition walls. With steel faces, a mineral wool core and a factory-finished surface, the panel supports reliable fire performance, thermal insulation and efficient installation in a single integrated system.
FACADE CONSTRUCTION

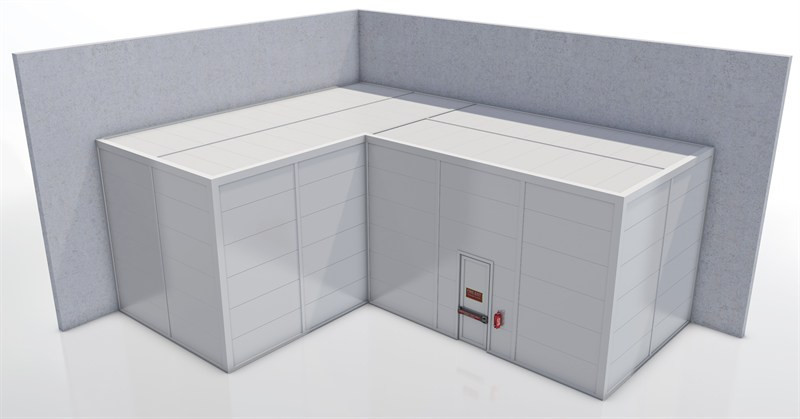

Horizontal wall panels
Horizontal installation enables large spans with fewer support elements, helping optimise substructure requirements and speed up installation.

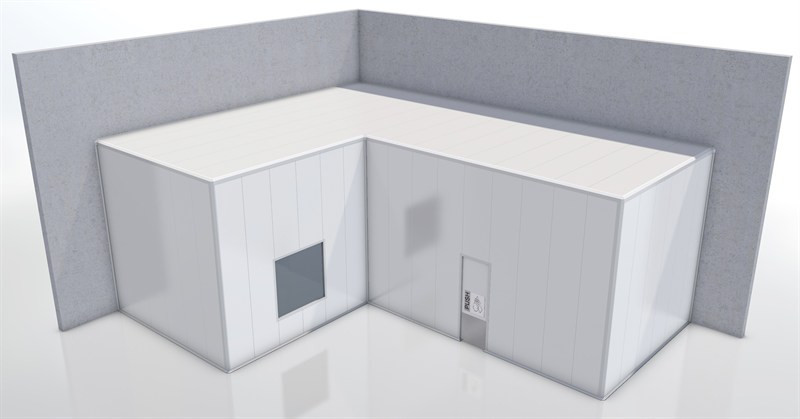

Vertical wall panels
Vertical installation creates clean, uninterrupted wall surfaces and is ideal for dividing tall interior spaces while maintaining reliable fire performance.
DETAILS
A selection of typical details illustrating horizontal and vertical panel installation and connection solutions. The details include common joint, base and connection configurations used in partition wall systems.

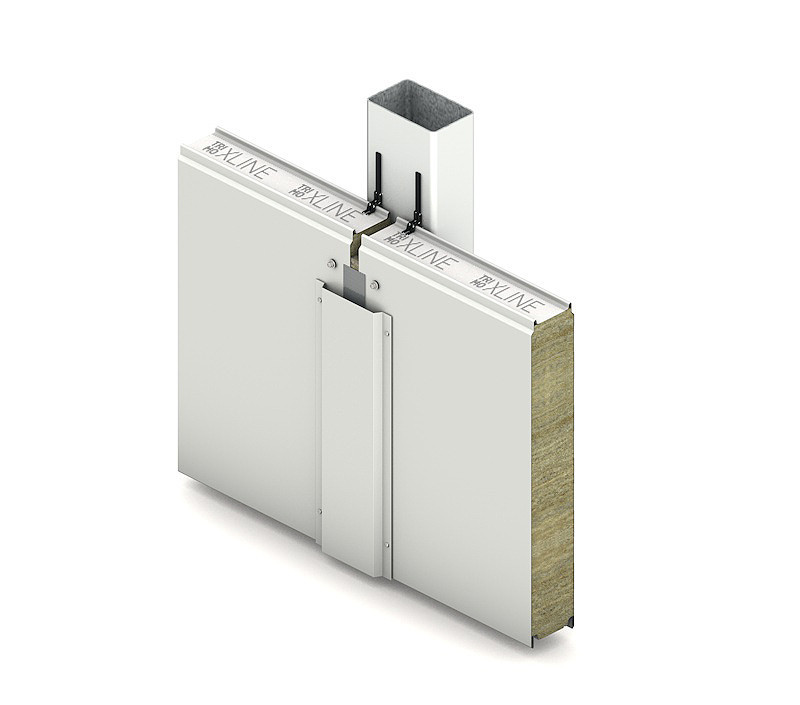

Horizontal panel joint detail

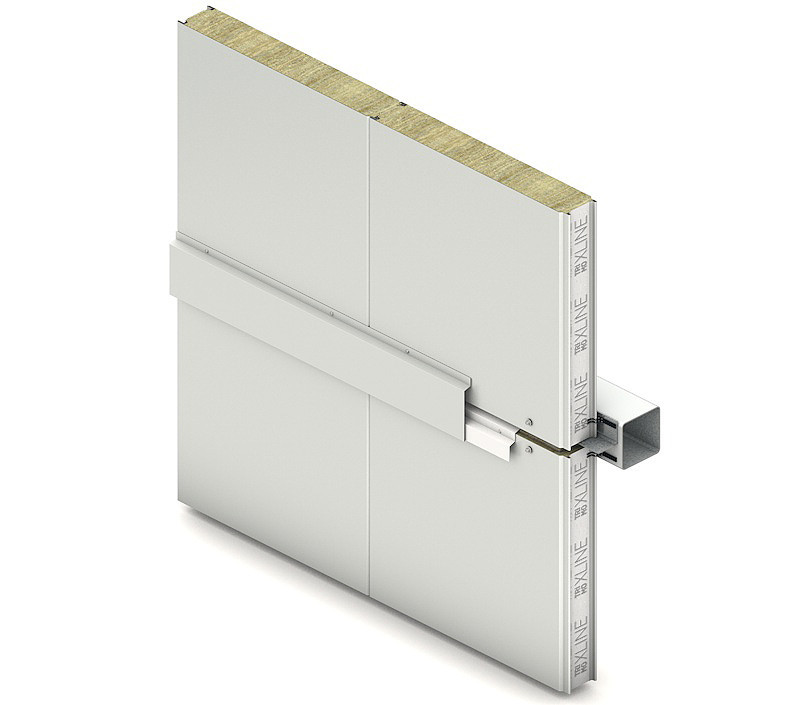

Vertical panel joint detail

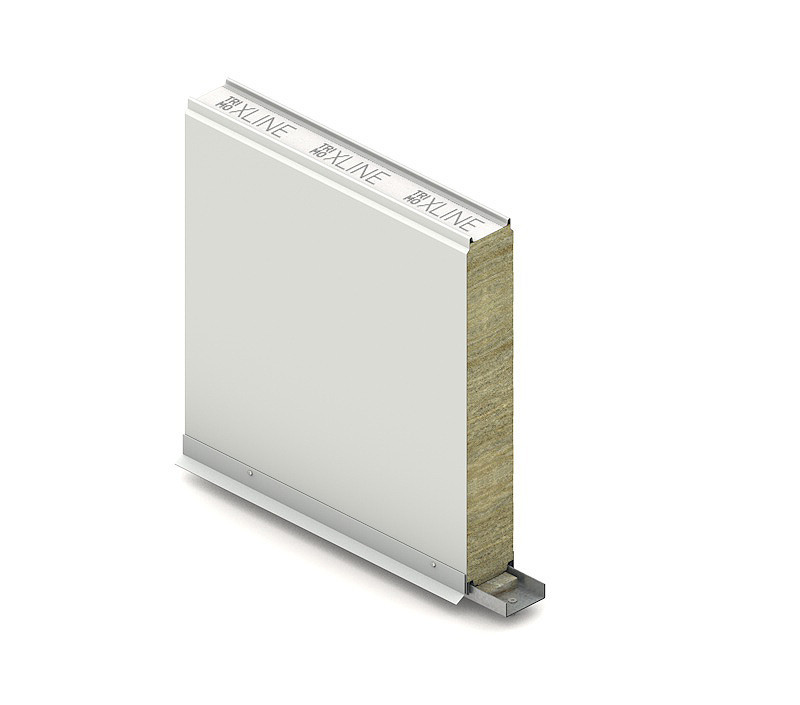

Horizontal panel base detail

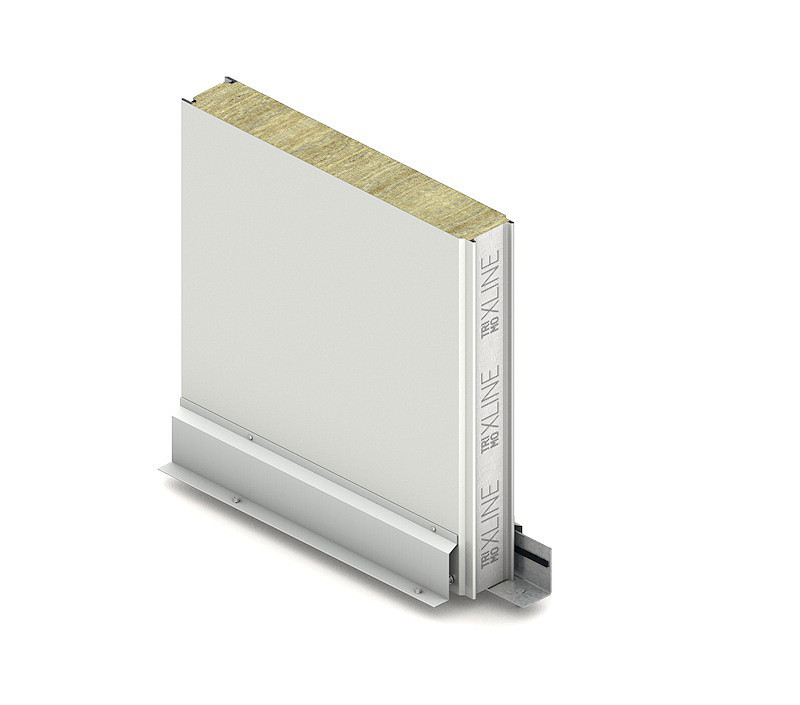

Vertical panel base detail

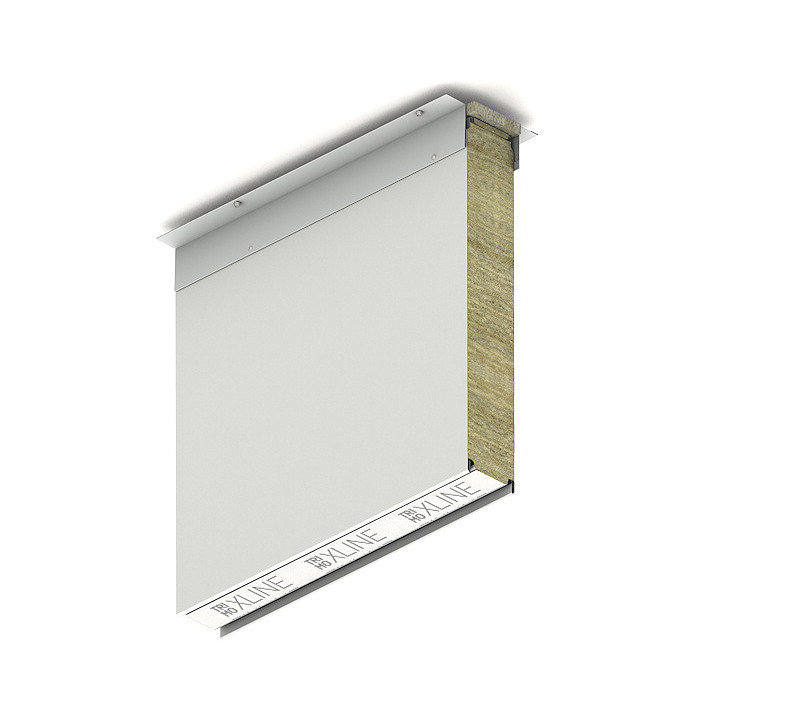

Horizontal panel ceiling detail

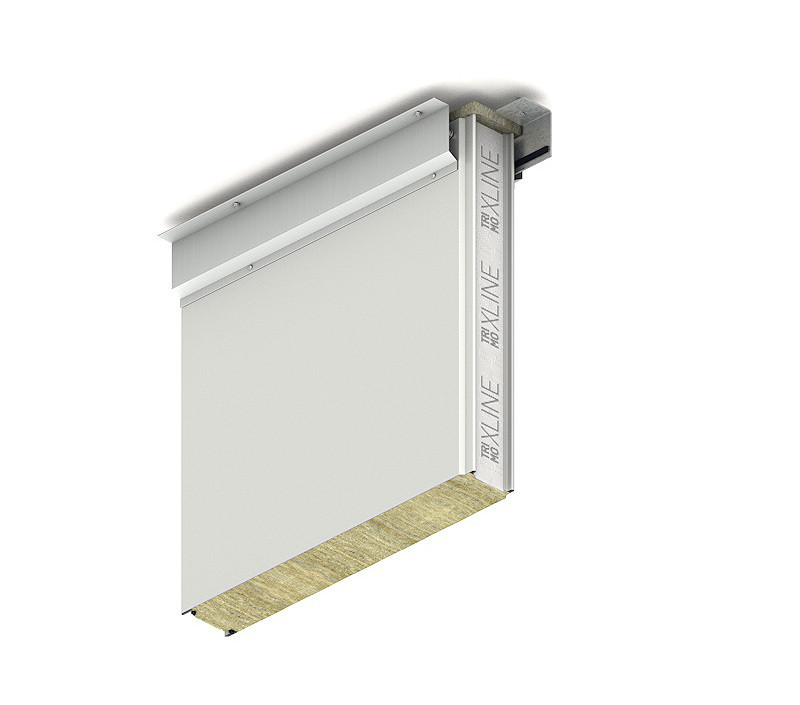

Vertical panel ceiling detail

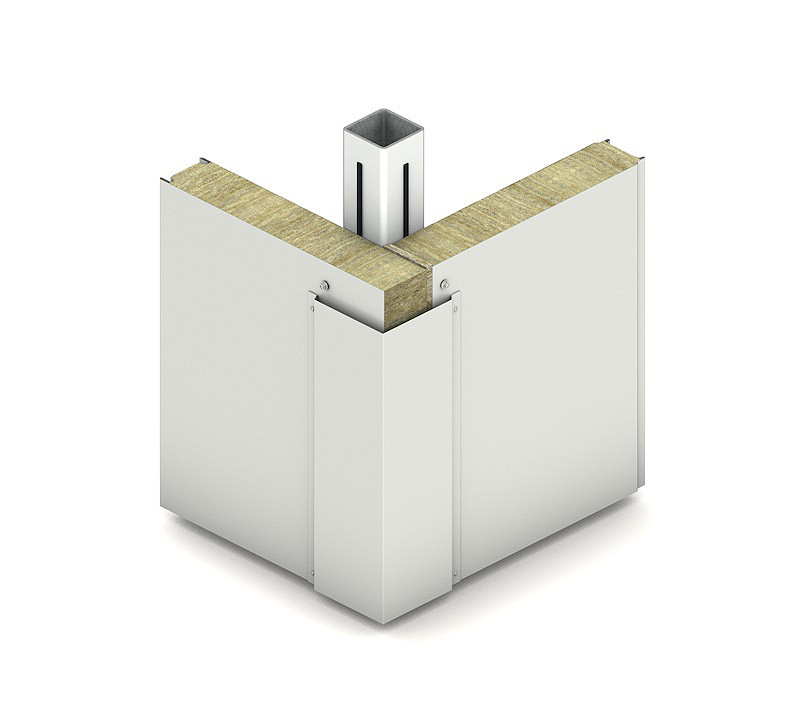

Horizontal panel corner detail

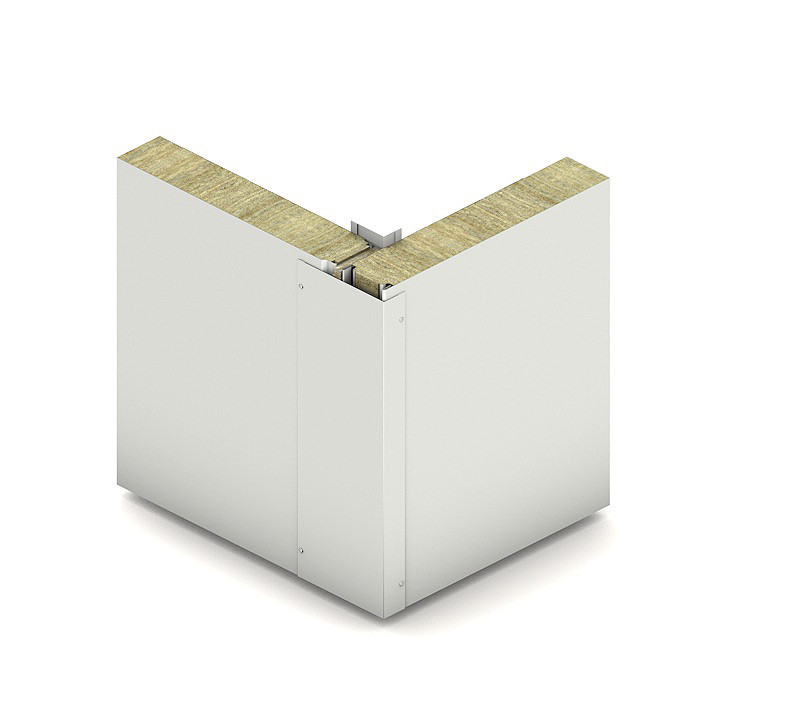

Vertical panel corner detail
KEY ADVANTAGES
Fast, efficient installation
A prefabricated single-component through-fix system simplifies installation, helping speed up on-site work and improve installation efficiency.
Reduced substructure requirements
Fire span limitations of up to 5.5 m horizontally and 5.0 m vertically can help reduce additional framing and support faster installation, depending on panel type and design criteria.
Clean, dry construction
Prefabricated panels support fast, dry installation with minimal cutting and no wet trades, reducing on-site debris and helping ensure a clean, high-quality finish.
Durable, refined finish
Steel-faced panels provide a clean, refined industrial finish that is easy to clean, easy to maintain and suitable for long-term use.
