FIXING SYSTEM
STANDARD system

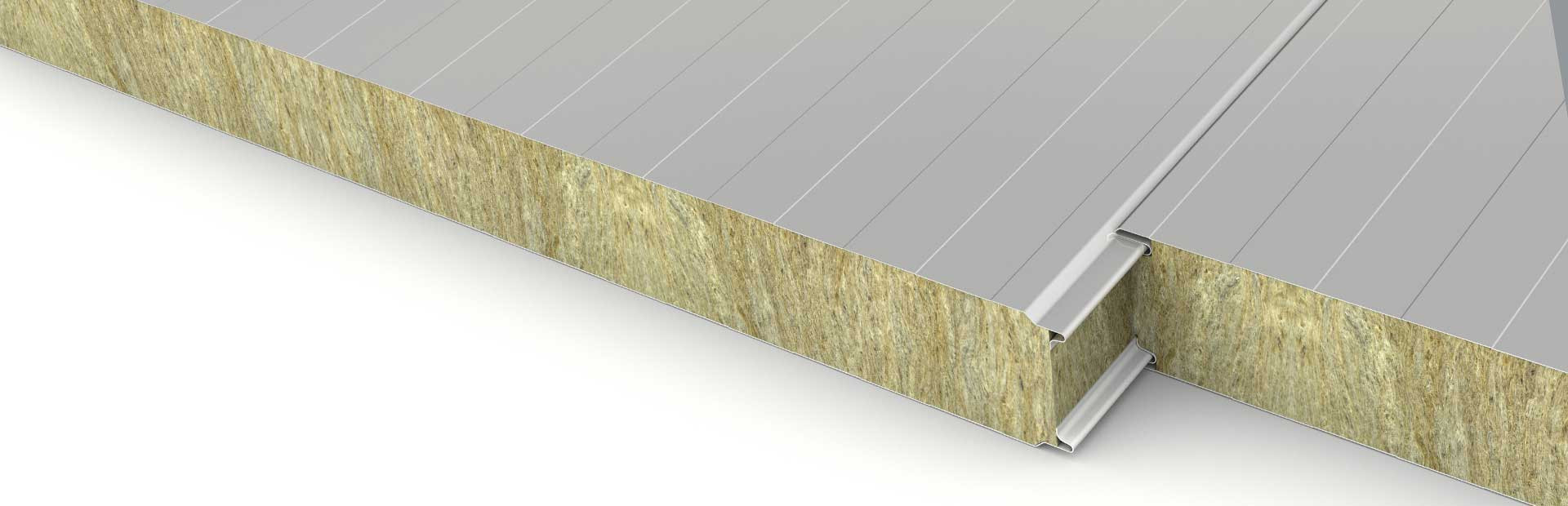

The Xline T WV standard fixing system is a visible fixing solution designed for the horizontal and vertical installation of Xline panels.
TECHNICAL PROPERTIES
| Panel thickness [mm] | 60 - 80 |
| Weight FTV (Fe 0,6/0,5) (kg/m2) | 15.70 - 32.80 |
| Max. achievable fire resistance FTV (EN 14509)* | EI90 - EI120 |
| U Thermal transmittance (W/m2K)** | 0.6 - 0.15 |
| Airborne sound insulation FTV Rw (C;Ctr) dB (EN 14509) | 30 (-2;-4) - 31 (-3;-4) |
| Combustibility of material core (EN 13501-1) | mineral wool non combustible Class A1 |
| Reaction to fire (EN 13501-1) | A2-s1,d0 class |
| Water permeability (EN 14509) | Class A (1200Pa) |
| Panel length (m)*** | 2.5 - 13.2 m |
| Cover width (mm) | 1000 mm |
* Request for fire resistance must be clearly specified by customer.
** Values valid only for featured application in the centre of panel.
*** Custom lengths <2.5 m and >13.2 m (up to 15 m) are available on request.
MATERIALS
Xline panels feature high-performance mineral wool insulation. It delivers excellent fire safety, reliable thermal performance, and helps create more energy-efficient and sustainable buildings.
- Exceptional fire safety
Class A1 non-combustible rating - Consistent performance
Maintains thermal and structural integrity throughout its lifespan - Eco-friendly
100% recyclable and can be disposed of as non-hazardous waste - Hygienic and safe
Does not support bacteria or rodent growth - perfect for food processing and pharmaceutical facilities - Optimal density
90 kg/m³ for reliable insulation and stability
The surface is protected with a high‑quality organic coating system (SP – Polyester), applied through a coil coating process in compliance with EN 10169. This ensures a consistent appearance and reliable long‑term performance.
Thickness options:
- External sheet: 0.50–0.60 mm
- Internal sheet: 0.50–0.60 mm

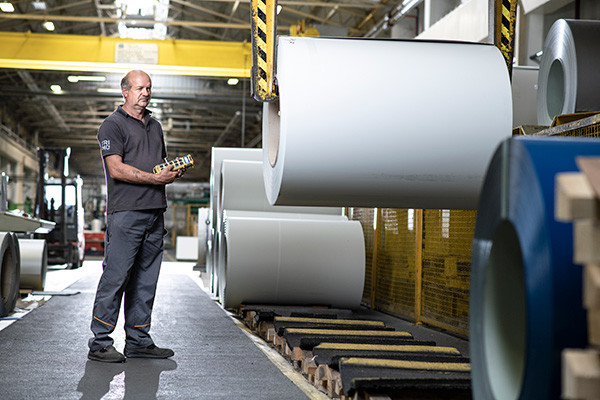

A selection of standard colour finishes ensures a clean, refined architectural appearance.
Available colours:- white (R9010),
- grey white (R9002),
- light grey (R7035).
TECHNICAL SUPPORT
Range of services:
- ArchiCAD details
- Technical consulting
- Static calculations
For technical information:
For commercial inquiries:
CERTIFICATES
Xline panels are CE marked and FM Approved, demonstrating compliance with recognised European standards and demanding fire safety requirements for industrial and logistics buildings.
FM: only valid with 0.6/0.5 mm steel
PACKAGING
Xline sandwich panels are stacked on honeycomb cardboard sheets, cushioned with styrofoam pads, and fully wrapped in foil to create solid, easy-to-handle bundles.
| Panel thickness [mm] | 60 | 80 | 100 | 120 | 150 | 175 | 200 | 250 |
| Stacked interleaved | 18 | 12 | 10 | 9 | 7 | 6 | 5 | 4 |
